Steel grating is one of the most widely used structural steel products in industrial construction, municipal engineering, offshore platforms, and commercial buildings. Its high strength, outstanding ventilation, drainage performance, and anti-slip features depend entirely on professional and standardized manufacturing processes.
In this article, we will introduce the complete steel grating manufacturing process step by step, from raw material processing to finished quality inspection.
1. Raw Material Selection and Slitting
The production of high-quality steel grating starts with strict raw material selection. We use high-quality carbon steel and stainless steel coils with stable chemical composition and uniform mechanical properties.
After strict incoming inspection, the steel coils are slit into standard bearing bars and cross bars by professional slitting machines. The width, thickness, and flatness of each steel strip are precisely controlled to ensure consistency in the final grating structure.
2. Precision Cutting and Sizing
All slit steel materials are processed by CNC precision cutting equipment. According to production drawings and customer requirements, the bearing bars and cross bars are cut to fixed lengths.
This process ensures smooth cutting surfaces without burrs or deformation. Custom cutting for special-shaped steel gratings, including cut corners, openings, and curved shapes, is completed in this stage.
3. Mold Assembly and Positioning
Qualified steel bars are neatly arranged in professional welding molds. Workers precisely adjust the spacing of bearing bars and cross bars according to standard grid sizes.
Uniform grid spacing and neat arrangement guarantee stable structure, even load distribution, and consistent appearance of each steel grating panel.

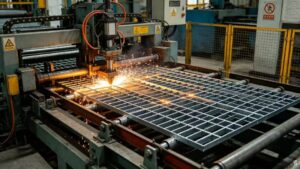

4. Automatic Pressure Welding Forming
Automatic high-pressure resistance welding is the core process of steel grating production.
The equipment presses twisted square steel cross bars tightly onto bearing bars and performs instant high-current welding at every intersection. Each welding point forms strong metallurgical integration without missing welding or virtual welding.
Automatic pressure welding ensures high flatness, strong rigidity, excellent load-bearing capacity, and stable overall structure of steel gratings.

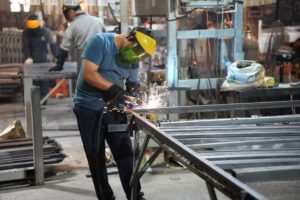

5. Edge Sealing and Deep Processing
After welding forming, steel grating panels go through edge sealing treatment. Solid flat steel is welded around the perimeter to strengthen the overall structure and prevent deformation.
We also provide customized deep processing services, including punching, bending, grooving, and serrated anti-slip treatment. Serrated steel grating greatly improves anti-slip performance for wet, oily, and high-altitude working environments.

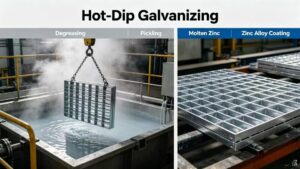

6. Surface Anti-Corrosion Treatment
Surface treatment determines the service life and durability of steel gratings. The most common and effective treatment is hot-dip galvanizing.
The finished steel gratings are fully cleaned through degreasing, pickling, and surface polishing to remove rust, oil, and impurities. Then the panels are immersed in high-temperature molten zinc liquid.
A dense zinc alloy layer is formed on the steel surface, providing excellent anti-corrosion, anti-rust, and oxidation resistance. Hot-dip galvanized steel grating can serve more than 20 years in outdoor, coastal, and harsh industrial environments.
Other optional treatments include electro-galvanizing and paint spraying for different application demands.

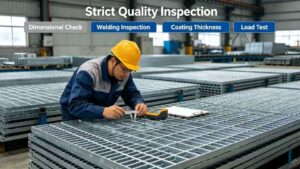

7. Strict Quality Inspection
Every batch of steel gratings undergoes comprehensive quality inspection before delivery:
– Dimensional accuracy inspection of length, width, and grid spacing
– Welding strength and flatness inspection
– Galvanized layer thickness and surface quality testing
– Load-bearing and structural stability sampling test
Only qualified products are allowed to be packaged and shipped.

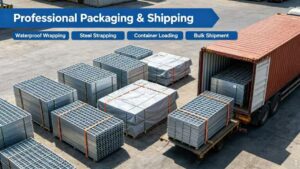

8. Professional Packaging and Delivery
Finished steel gratings are cleaned, sorted, and professionally packed with waterproof wrapping and steel strips. The standard packaging prevents friction damage, deformation, and coating scratches during long-distance sea and land transportation.
We support container loading, bulk shipment, and customized packaging for global clients.
Conclusion
Standardized manufacturing processes ensure the high strength, durability, and stable quality of industrial steel gratings. Strict raw material selection, automatic pressure welding, precise deep processing, professional anti-corrosion treatment, and systematic quality control make our steel gratings reliable for various industrial and civil engineering projects worldwide.
We provide customized steel grating products, including plain steel grating, serrated steel grating, heavy-duty steel grating, and stainless steel grating for platforms, walkways, drainage covers, and stair treads.
